Quick Details

  • Type: Other
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: YAOGONG
  • Model Number: YG-909D+
  • Voltage: 110V/220V
  • Current: 2A, 2A
  • Rated Capacity: 120 L/min
  • Rated Duty Cycle: 95%

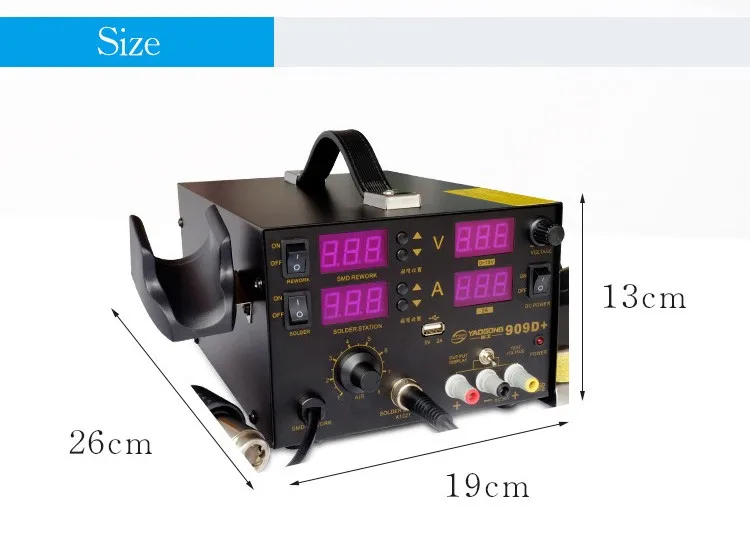

  • Dimensions: 240*190*170mm
  • Weight: 4.45kg
  • Usage: Soldering, de-soldering,power supply,voltage test,mobile repair
  • Certification: RoHS,CE,SAA,ISO9001:2008
  • After-sales Service Provided: No overseas service provided
  • Blower Fan: Brushless fan
  • Feature: Cool/Hot Air, Temperature Adjustable, Temperature Digital Display
  • Air temperature Range: 100-480℃
  • 3 in 1 smd rework station: DC power supply/soldering iron/hot air gun
  • Color: Black
  • Output voltage: 15V
  • Amount wind: 120L/min(max)
  • Power of rework station: 750 W
  • OEM: Avaliable

Packaging & Delivery

Packaging Details Standard International Packing/Customized packing
Delivery Time Shipped in 3 days after payment

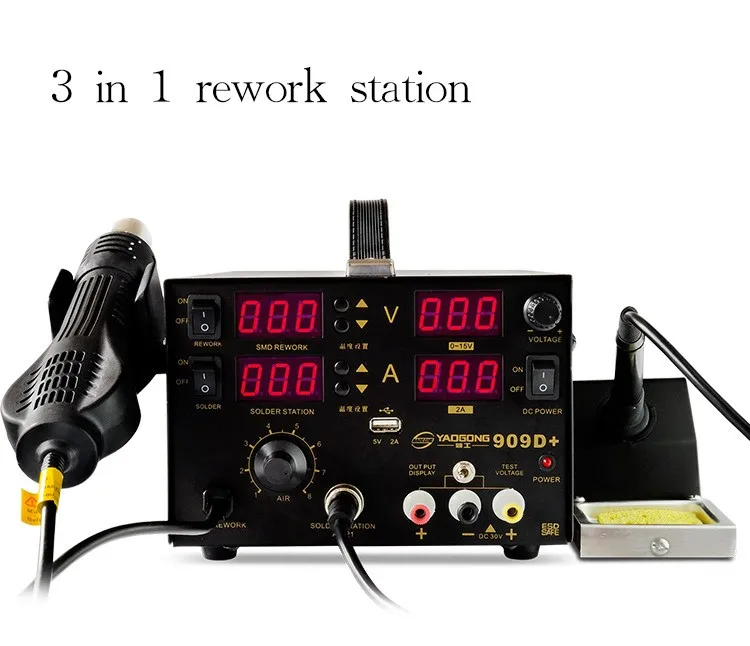

YAOGONG New Long Life  909D+  3 In 1 With DC Power Supply Hot Air SMD Soldering Rework Station

Product Description
  • Model: YAOGONG-909D+
  • Centigrade/Fahrenheit Programmable
  • ESD Safe
  • Total Power Consumption: 750 Watts

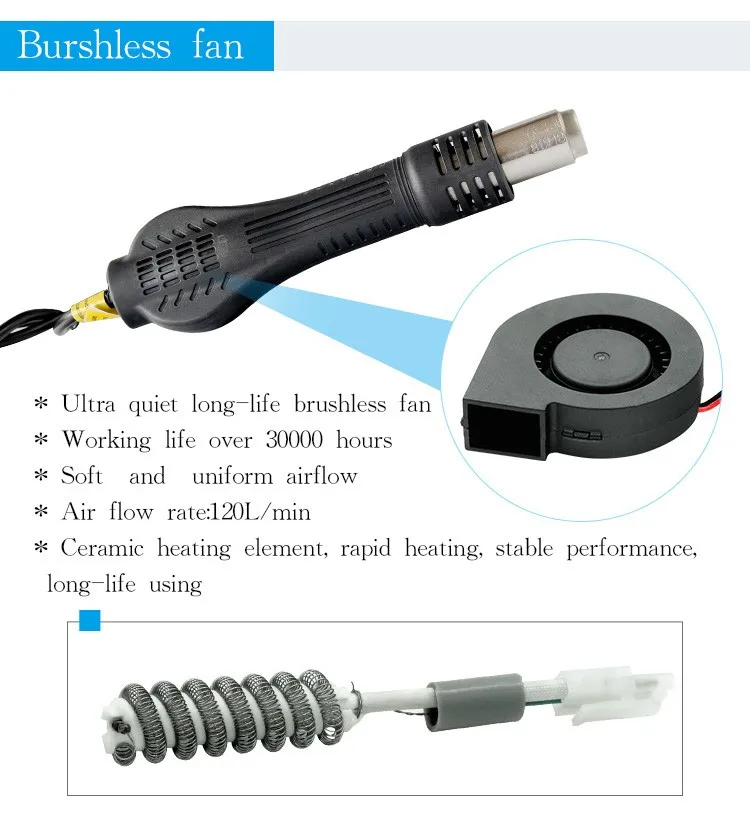

  • Hot Air Gun - Brushless Ball
  • Hot Air Gun: 500 Watts
  • Temperature Range 212° F ~ 896°F/100°C ~ 480°C with Auto Cool Down Safety Feature
  • Hot Air Gun Air Flow: 120L/Min
  • Hot Air Gun Temperature Stability: ±1.8°F/1.0°C
  • Hot Air Gun Tube Material: 100% Silicone
  • Soldering Iron: 60 Watts Total Power Output
  • Temperature Range 392°F ~ 896°F/200°C ~ 480°C
  • Soldering Iron Temperature Stability: ±4.8°F/1.0°C - Cord Length: 56.0 In./142.2 Cm.

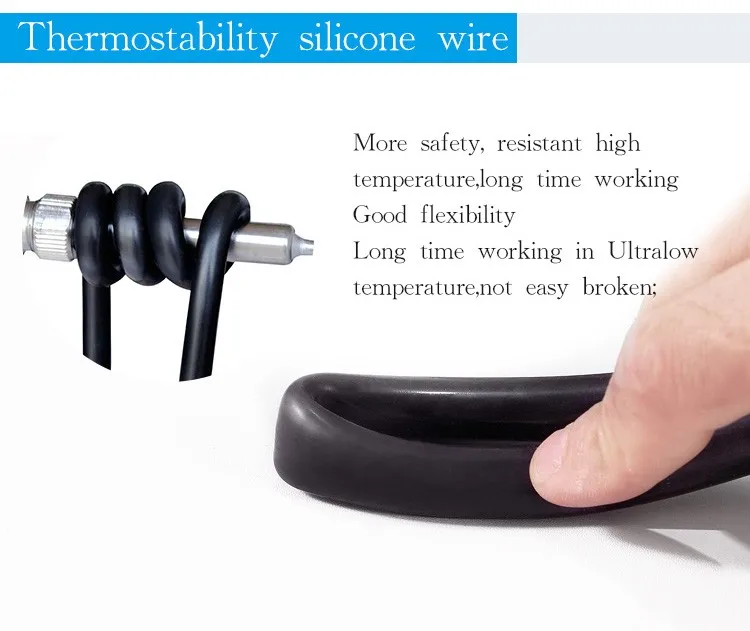

  • Soldering Iron Cord Material: 100% Silicone (Virtually No Memory)
  • Working Environment: 0°F ~ 122°F/ 0°C ~ 50°C
  • Storage Environment: -68°F ~ 176°F/-20°C ~ 80°C
  • Shipping Weight: 8 Lbs.
  • Weigth:4.2kg/pcs
  • Rated voltage:110/220V - 50 Hz
Product Display



Main features
Item No. YAOGONG 909D+ rework soldering station
VoltageAC 110/220V 50HZ
Power consumption750W
Hot air gun Brushless fan
Temperature range100~480 °C
Airflow120 L/M(max)
Temperature stability±1℃
Length of Handle120cm

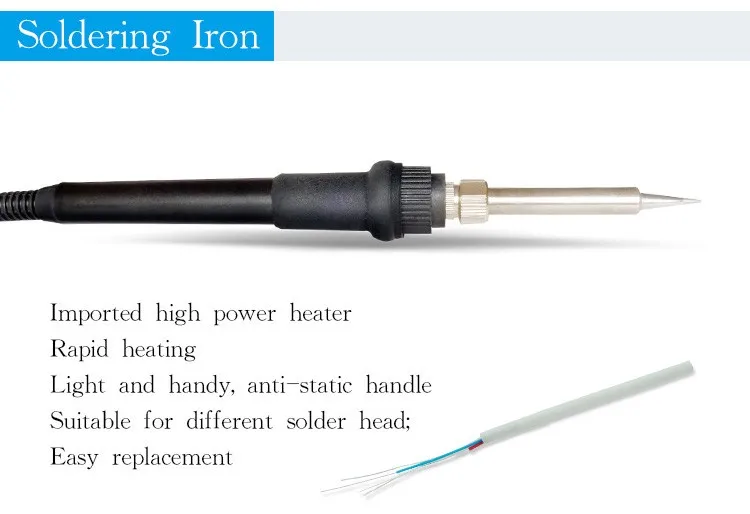

Soldering Iron
Soldering iron temperature200-480℃
Power consumption50W
Resistance to the ground≤2Ω

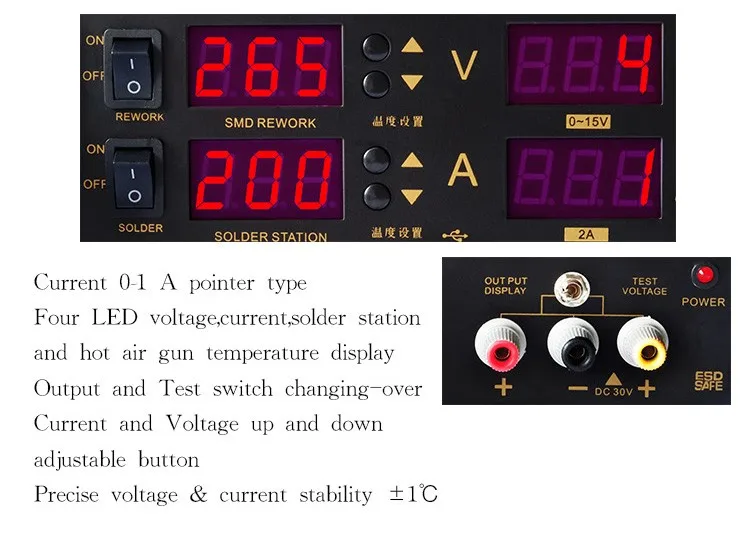

Output Voltage

AC 24V
Manufacturing Workflow
Company Information
Packaging & Shipping
M.O.Q.According to different items, we set low MOQ to
match customers requirement
PackingEach single machine will be packed in a carton
box, customized packing is accepted.
Existing samples will be ready for 1-3 days
delivery, OEM samples will be ready for
3-5 days.
7-15 days after all details are confirmed.
We accept payment terms: T/T,WESTERN
UNION, MONEYGRAM,PayPals,L/C at sight.
(T/T :30% deposit upon approval sample, the
balance paid before shipment.)
3 months product warranty, but customer need
to bear the freight when goods return or repair
some accessories for secondary purchase.
Door to door shipping EMS,DHL,Fedex ,Aramax,
UPS.It will always take 3-5 working days.
2).Air shipping.
3).Sea shipping.
Hot Line86-20-89625915              86-13434236097
Warm Tips
1. The air outlet and its surrounding area maybe very hot. Be
    cautious of scald.
2. The heating handle shall not be put on the working table or
    other place except its holder.
3. To keep the air outlet unblocked.
4. To put the heating handle on its holder after the work, and keep
    it cool naturally to the standby mode, then switch off the power.
5. The distance between the air outlet and the object shall be no
    less than 2mm.
6. To choose suitable blast nozzle in accordance with working

7. Different blast nozzles may have different temperature.
