Quick Details

  • Type: Other
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: YAOGONG
  • Model Number: YG-909S
  • Voltage: 110V/220V
  • Current: 1A
  • Rated Capacity: 120 L/min
  • Rated Duty Cycle: 95%
  • Dimensions: 240*190*170mm
  • Weight: 4.45kg
  • Usage: Soldering, de-soldering,power supply,voltage test,mobile repair
  • Certification: RoHS,CE,SAA,ISO9001:2008
  • After-sales Service Provided: No overseas service provided
  • Blower Fan: Brushless fan
  • Feature: Cool/Hot Air, Temperature Adjustable, Temperature Digital Display
  • Air temperature range: 100-480℃
  • Name: YAOGONG 909 soldering station hot air soldering rework station
  • Color: Blue and yellow
  • Output voltage: 15V
  • Temperature stability: ±1℃
  • Amount wind: 120L/min(max)
  • Rated voltage: AC 110/220V 50HZ
  • OEM: Avaliable

Packaging & Delivery

Packaging Details Standard International Packing/Customized packing
Delivery Time Shipped in 3 days after payment

YAOGONG 909S soldering station with DC power supply hot air 3 in 1 rework station



Product Description
  • Model: YAOGONG-909S
  • Centigrade/Fahrenheit Programmable
  • ESD Safe
  • Total Power Consumption: 700 Watts

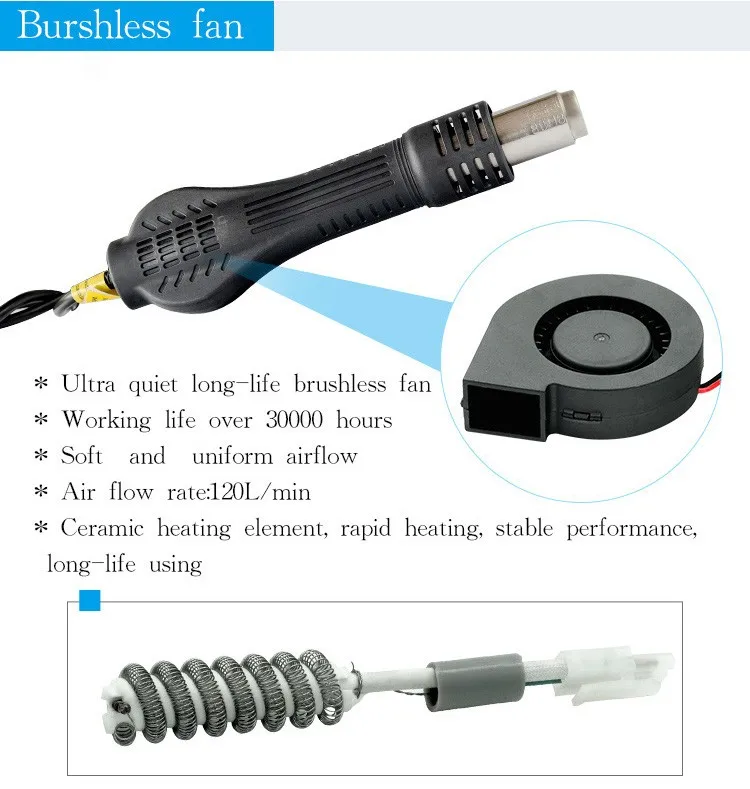

  • Hot Air Gun - Brushless Ball
  • Hot Air Gun: 500 Watts
  • Temperature Range 212° F ~ 896°F/100°C ~ 480°C with Auto Cool Down Safety Feature
  • Hot Air Gun Air Flow: 120L/Min
  • Hot Air Gun Temperature Stability: ±1.8°F/1.0°C
  • Hot Air Gun Tube Material: 100% Silicone

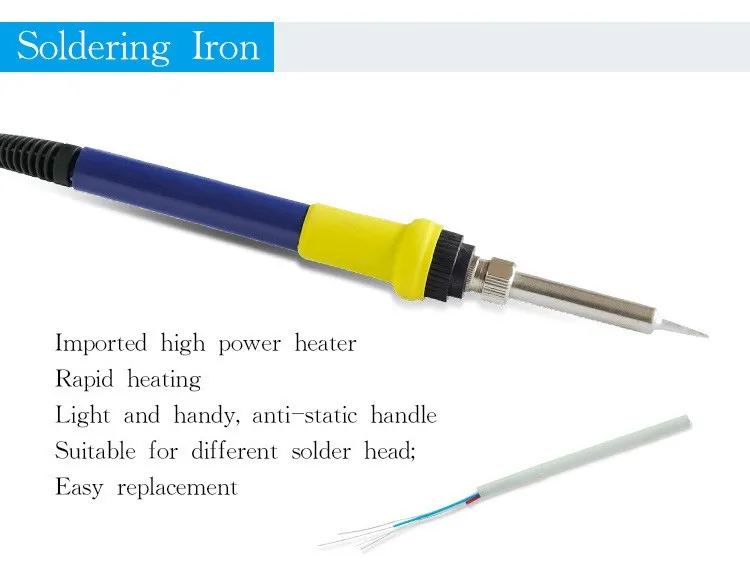

  • Soldering Iron: 60 Watts Total Power Output
  • Temperature Range 392°F ~ 896°F/200°C ~ 480°C
  • Soldering Iron Temperature Stability: ±4.8°F/1.0°C - Cord Length: 56.0 In./142.2 Cm.
  • Soldering Iron Cord Material: 100% Silicone (Virtually No Memory)
  • Working Environment: 0°F ~ 122°F/ 0°C ~ 50°C
  • Storage Environment: -68°F ~ 176°F/-20°C ~ 80°C
  • Shipping Weight: 8 Lbs.
  • Weigth:4.2kg/pcs
  • Rated voltage:110/220V - 50 Hz
Product Display





Main features
Item No. YAOGONG 909S rework soldering station
VoltageAC 110/220V 50HZ
Power consumption700W
Weight4.52KG
Hot air gun Brushless fan
Temperature range100~450 °C
Airflow120 L/M(max)
Temperature stability±1℃
DisplayLED
Noise<45Db
Length of Handle120cm
Soldering Iron
Soldering iron temperature200-480℃
Power consumption50W
Resistance to the ground≤2Ω

Output Voltage

AC 24V
Manufacturing Workflow
Company Information
Packaging & Shipping
Certificate
FAQ
M.O.Q.According to different items, we set low MOQ to
match customers requirement
PackingEach single machine will be packed in a carton
box, customized packing is accepted.
Sample
Policy
Existing samples will be ready for 1-3 days
delivery, OEM samples will be ready for
3-5 days.
Production
Lead-Time
7-15 days after all details are confirmed.
Payment
Term
We accept payment terms: T/T,WESTERN
UNION, MONEYGRAM,PayPals,L/C at sight.
(T/T :30% deposit upon approval sample, the
balance paid before shipment.)
Product
warranty
3 months product warranty, but customer need
to bear the freight when goods return or repair
some accessories for secondary purchase.
Shipping1).Express:
Door to door shipping EMS,DHL,Fedex ,Aramax,
UPS.It will always take 3-5 working days.
2).Air shipping.
3).Sea shipping.
Hot Line86-20-89625915              86-13434236097
Warm Tips
1. The air outlet and its surrounding area maybe very hot. Be
    cautious of scald.
2. The heating handle shall not be put on the working table or
    other place except its holder.
3. To keep the air outlet unblocked.
4. To put the heating handle on its holder after the work, and keep
    it cool naturally to the standby mode, then switch off the power.
5. The distance between the air outlet and the object shall be no
    less than 2mm.
6. To choose suitable blast nozzle in accordance with working
    requirements.

7. Different blast nozzles may have different temperature.
