Quick Details

  • Type: Other
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: YAOGONG
  • Model Number: YG-909
  • Voltage: 110V/220V
  • Current: 4V
  • Rated Capacity: 45 L/min
  • Rated Duty Cycle: 100%
  • Dimensions: 60*34.5*49cm
  • Weight: 5kg
  • Usage: Soldering, de-soldering,power supply,voltage test,mobile repair
  • Certification: ROHS,CE,SAA,ISO9001
  • After-sales Service Provided: No overseas service provided
  • Blower Fan: Brushless fan
  • Feature: Cool/Hot Air, Temperature Aadjustable, Temperature Digital Display
  • Air temperature range: 100-450℃
  • Name: YAOGONG YG-909 Motherboard rework station
  • Color: Blue & Yellow
  • Pump power: 450W
  • Temperature stability: ±1℃
  • Amount wind: 120L/min(max)
  • rated voltage: AC 220V/AC 110V
  • OEM: Aviliable

Packaging & Delivery

Packaging Details YAOGONG YG-909 Motherboard rework station package:
Standard International Packing/Customized packing
Delivery Time Shipped in 3 days after payment

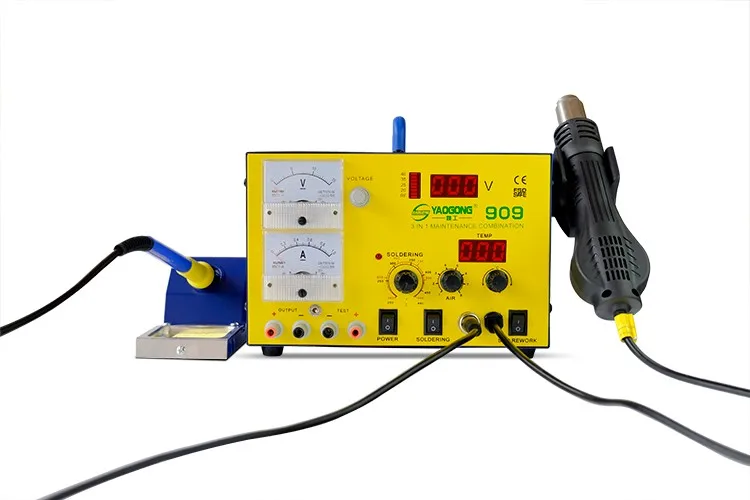

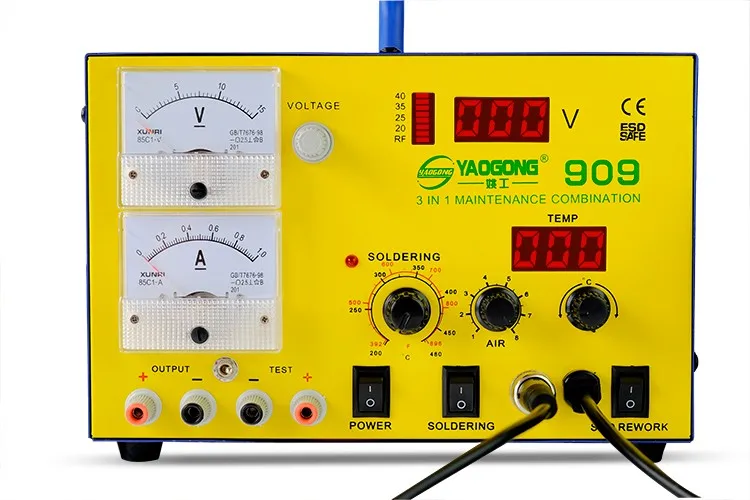

YAOGONG YG-909 Motherboard rework station

Product Description
1.LED digital display and Anti-static/ withstand high temperature handle;
2.Microcomputer control, warming up quickly;
3.Adjustable air flow and temperature control rotation;
4.Automatically cooling down system when temperature is below 70℃;
5.Intelligent system, protect inside compotent automatically;
6.2 in 1 combination group, hot air rework station and soldering station;
7.Safe solder QFP,PLCC,BGA and other temperature-sentative components;
8.Three kinds of nozzles(big,middle and small) replacement part;
9.High quality silicone body heat good for extend life and save power;

Product Display



Main features
Item No. YAOGONG YG-909 Motherboard rework station
Power consumption450W
Hot air gun Brushless fan
Temperature range100~450 °C
Airflow120 L/M(max)
Temperature stability±1℃/±2℃
Noise <45Db
Length of Handle120cm

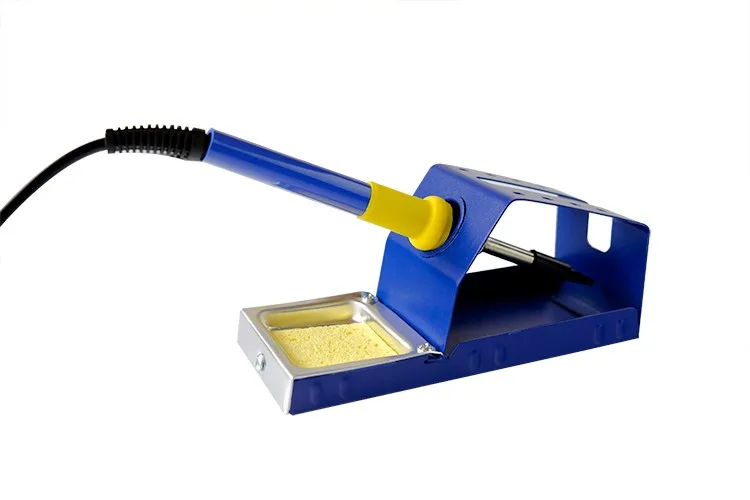

 Soldering Iron
Soldering iron temperature100-500℃
Manufacturing Workflow
Company Information
Packaging & Shipping
M.O.Q.According to different items, we set low MOQ to
match customers requirement
PackingEach single machine will be packed in a carton
box, customized packing is accepted.
Existing samples will be ready for 1-3 days
delivery, OEM samples will be ready for
3-5 days.
7-15 days after all details are confirmed.
We accept payment terms: T/T,WESTERN
UNION, MONEYGRAM,PayPals,L/C at sight.
(T/T :30% deposit upon approval sample, the
balance paid before shipment.)
3 months product warranty, but customer need
to bear the freight when goods return or repair
some accessories for secondary purchase.
Door to door shipping EMS,DHL,Fedex ,Aramax,
UPS.It will always take 3-5 working days.
2).Air shipping.
3).Sea shipping.
Hot Line86-20-89625915              86-13434236097
Warm Tips
1. The air outlet and its surrounding area maybe very hot. Be
    cautious of scald.
2. The heating handle shall not be put on the working table or
    other place except its holder.
3. To keep the air outlet unblocked.
4. To put the heating handle on its holder after the work, and keep
    it cool naturally to the standby mode, then switch off the power.
5. The distance between the air outlet and the object shall be no
    less than 2mm.
6. To choose suitable blast nozzle in accordance with working

7. Different blast nozzles may have different temperature.
